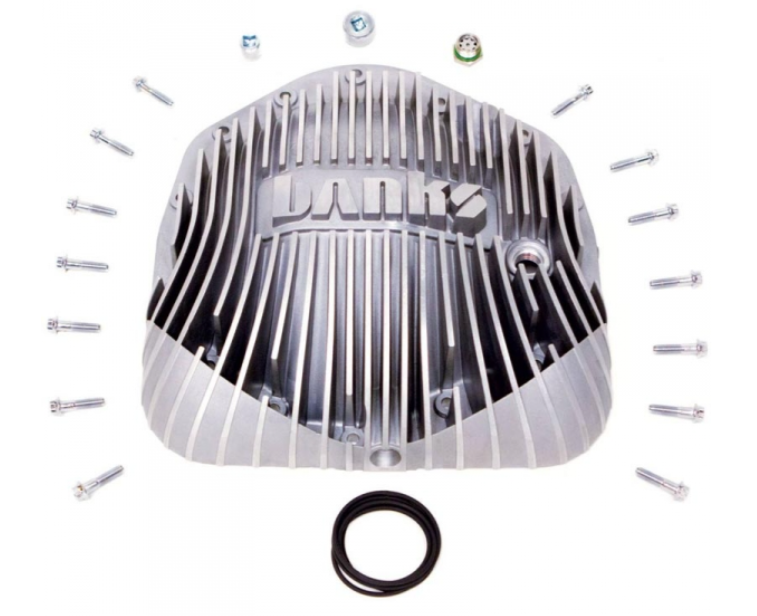

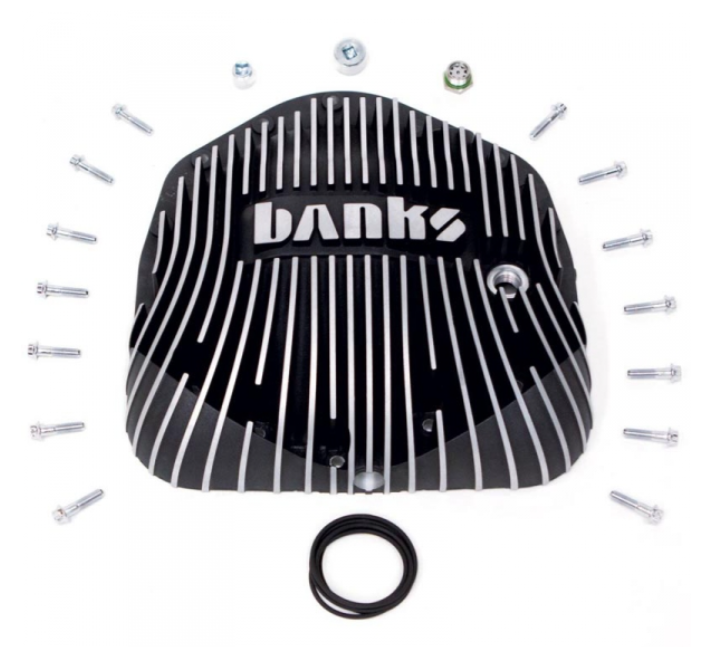

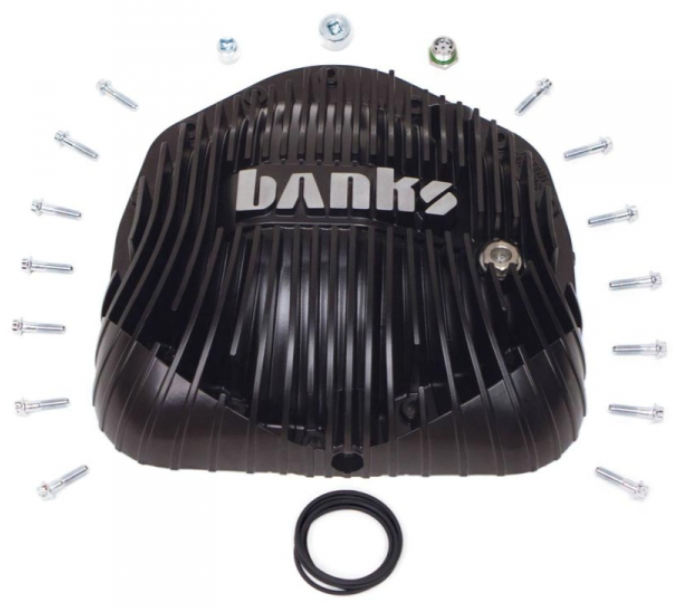

BANKS POWER AAM 11.5" 14-BOLT REAR RAM-AIR DIFFERENTIAL COVER

VEHICLE FITMENT FOR:
2001-2019 GM SILVERADO/SIERRA 2500HD/3500HD 6.6L DURAMAX
LB7/LLY/LBZ/LMM/LML/L5P | 2003-2018 DODGE RAM 2500/3500* (AAM 11.5")

Banks started from scratch while sparing no expense in the creation of the Banks Power AAM 11.5" 14-Bolt Rear Ram-Air Differential Cover. Banks set
out in search of the answer to the age-old "Do rear differential covers provide any real benefit or are they just bling?" After many, many hours of
research, Gale and the Banks Engineering Team uncovered two underlying problems with the aftermarket diff covers on the market; poor air flow as well
as flawed fluid dynamics. Both issues are not a concern with the Banks Ram-Air Diff Cover.
After performing tests on covers with a flat-back design and larger fluid capacities, Banks found that the hard angle of the flat-back causes poor fluid dynamics. With
computer-aided designing and road-testing, the Banks Ram-Air differential cover has improved fluid dynamics to help increase fuel economy and extend lubrication life.
It also cools 118% better than its flat-back competitor at sustained 60mph dyno tests and 4X better in on-road towing tests!
The Banks Ram-Air Differential Cover is constructed from A380 aluminum diecast featuring internal and external cooling fins, patented Ram-Air scoops to flow air around
the cooling fins, dry-mount silicone O-ring seal, and includes chrome-plated mounting hardware. There's also no need to remove the cover to service the oil. Banks
includes a magnetic drain plug, and a magnetic fill plug which is at a 20° angle for easier filling. A 1/2" stainless steel sight glass gives you the ability to monitor your fluid
level and condition.
FEATURES:
Ram-Air System
Magnetic Fill Plug
Lubricant Raceway
1/8” NPT Sensor Port
Directional Fluid Guides
Patented Ram-Air Scoops
Internal Heat Absorption Fins
Class-Leading Heat Rejection
Precision Fit Machined Surface
Sight-Glass with Contrast Screen
Die-Cast A380 Aluminum Construction
Includes 304 Stainless-Steel Hardware
Radiused Ports For Smoother Fluid Flow

Does Not Sacrifice Any Ground Clearance
Magnetic Drain Plug For Simple Fluid Changes
Engineered To Break-Away If Snagged On An Obstacle
Dry-Mount High-Pressure Silicone O-Ring Seal. No More Messy RTV
Clears Spare Tire Heat Shield, Panhard Bars, And Other Components
TECHNICAL SPECS:
Weight: 11.7 lbs
External Heat Radiation Fin Count: 24
Internal Heat Absorption Fin Count: 26
Dimensions: 14.2 in X 13.3 in X 3.8 in
External Heat Radiation Fin Surface Area: 533.782 in2
Internal Heat Absorption Fin Surface Area: 119.882 in2
External Heat Radiation Total Surface Area: 808.81 in2
Internal Heat Absorption Total Surface Area: 215.78 in2
Fasteners: 14 x Stainless Steel M8-1.25 Flange Hex Bolts
Material: A380 Aluminum Diecast With CNC Machined Surfaces
Internal Volume: About 4.0 Qts (Check OEM Owners Manual)
FLUID DYNAMICS:
Low Fluid Aeration Means Longer Fluid Life
Cover Mates Flush With Differential Housing For Smooth Fluid Flow
Ring Gear Raceway Controls Fluid Flow To The Pinion And Bearings
Axle Tube Lubricant Guides Directs Lube To Bearings Without Overfilling
OIL SERVICE:
Magnetic Drain Plug
Magnetic Fill Port Plug
20° Angled Fill Port For Easy Access
No Need To Remove Cover To Change Fluid
Fill Level Depends On Model Year: (Approx. 4.0 Qts Fill To OEM Level)
1/2-inch Sight Glass With Contrast Screen (Visual Aid) & High-Quality Seal
APPLICATION NOTE:
Does Not Fit Ram Trucks With Airbag Suspension Alone.
Sway Bar Spacers (#19249-2) required on 2014-2024 Ram 2500/3500 Trucks with OEM sway bar.
