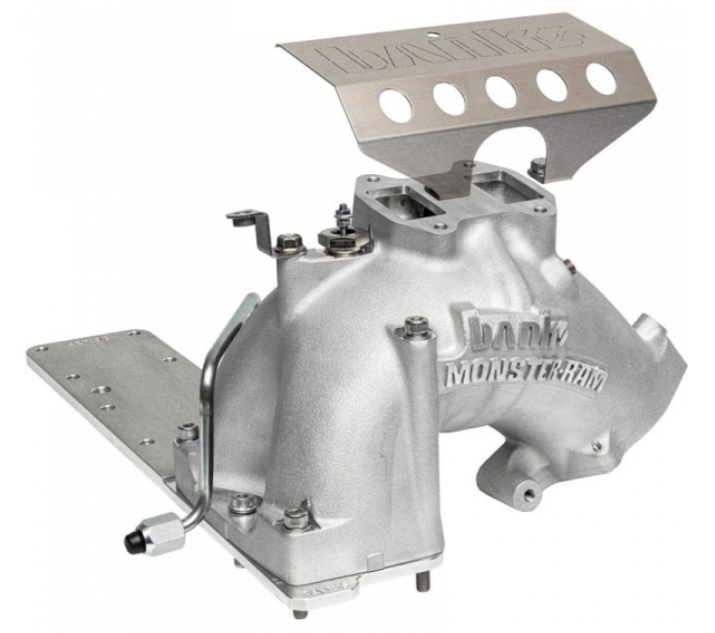

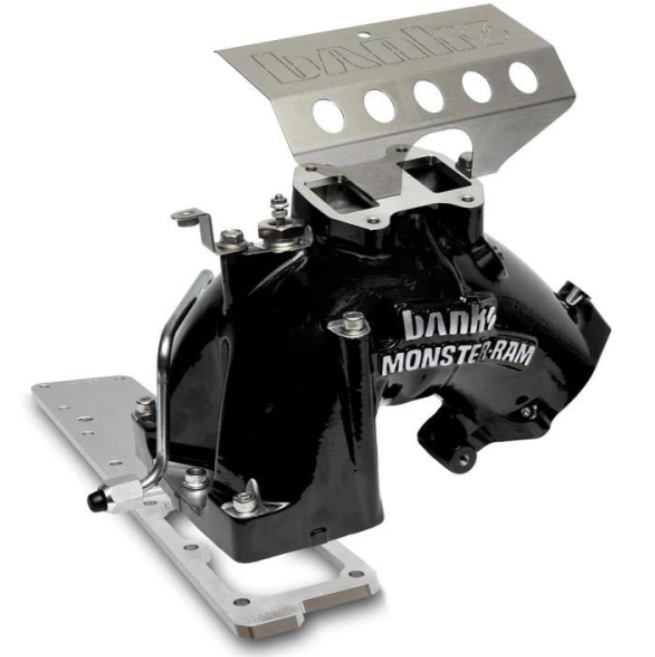

BANKS POWER MONSTER-RAM INTAKE & HEATER GRID UPGRADE

The Banks Power Monster-Ram Intake With Billet Intake Plate & Heater Grid will greatly increase the airow into the lower manifold of your 2013-2018 Ram 6.7L Diesel.
This intake was created utilizing the most up-to-date CFD (computational uid dynamics) software and then tested on the road, the dyno and a ow bench. This intake is
a direct-fit replacement with cast aluminum construction that oers instant power and greater acceleration.
The Monster-Ram intake system is enhanced with the addition of the High-Flow Heater and Billet Intake Plate. The High-Flow Heater replaces the restricted original
heater grid plate, allowing for even more airow. The vertical coil-style heater performs similarly to the stock heater grid in terms of cold start assistance, but without
impeding airflow. The Banks Intake Plate replaces the restricted original grid heater plate, removing all obstructions and turbulence from the airow channel.
Your truck's intake manifold is redesigned with the Banks Power Monster-Ram Intake With Billet Heater & Intake Plate. The original intake elbow is sharp and cramped
to create space for the No. 1 fuel line. The No. 1 fuel line was re-engineered by Banks to allow for more airow and less blockage in this intake. The standard intake
manifold only flows 421 cfm (32.16 lbs/min), but this intake manifold with intake plate ows 936 cfm (71.5 lbs/min). The increased airow provides a boost to the turbine
without raising backpressure. The increased throttle response implies a more power-ecient engine with even more headroom than the standard intake manifold can
provide for higher horsepower applications.
Prevent Damage
The bolt in the factory grid heater on your 2007.5-2018 Dodge Ram 6.7L Diesel can loosen or melt, break o, and fall into the intake runner, making its way into the #6
cylinder. By replacing the stock, restrictive, grid heater with a billet high-ow intake plate, the risk of the bolt falling into the runner is alleviated and greater airow was
achieved. A coil heater that sits vertically within the Monster Ram’s aluminum casting assists with cold weather starts.

FEATURES:
3-3/8” Inlet
Four 1/8” NPT Ports
Quicker Throttle Response
Outows Stock By Over 122%
Optimizes Air Pressure & Distribution
Accommodates Stock Mounting Points
Larger & Less Restrictive Than Stock Intake

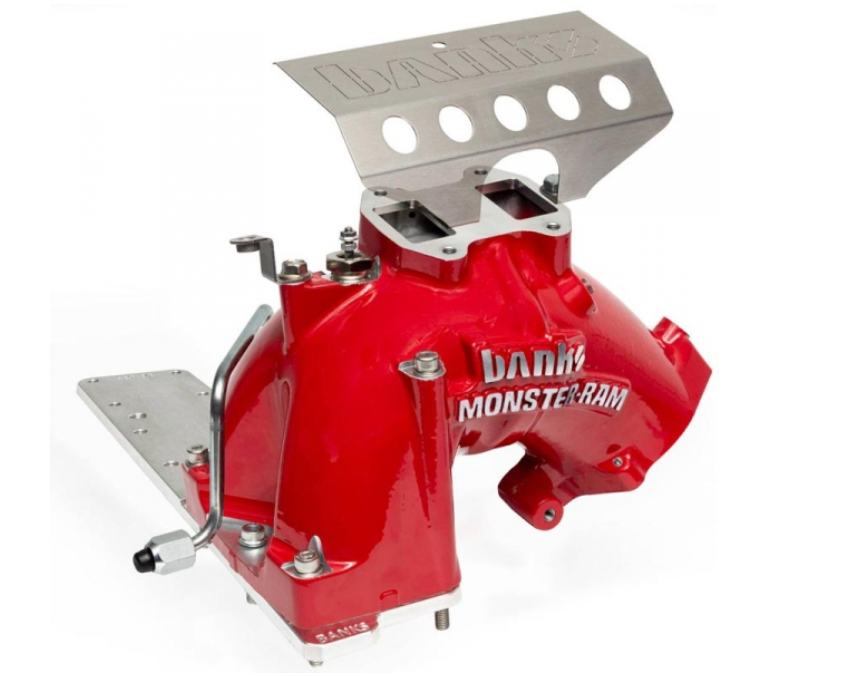

Available In Natural Or Red Power-Coat Finish
Improves Flow Of Oxygen-Rich Air Into Cylinders
Raises Boost Without Increasing Turbine Drive Pressure
Includes Proprietary Fuel Line & All Necessary Hardware
Note:
This intake system is not compatible with the Cab & Chassis models.

**Lead time is varying**
