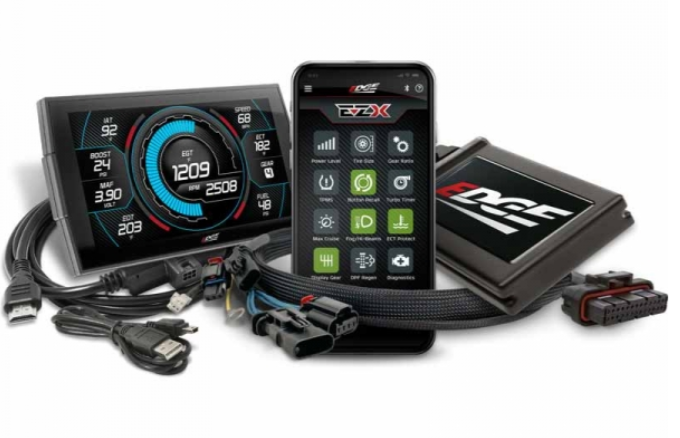

EDGE PRODUCTS 33710-3 EZX MODULE & INSIGHT CTS3 KIT

The Edge Products 33710-3 EZX Module & Insight CTS3 Kit from XDP helps you get the most from your 2019-2024 Ram 6.7L Diesel 2500/3500 or 2019-2022 Ram 6.7L Diesel
3500/4500/5500 (Cab & Chassis). This plug-and-play upgrade offers total control over your Ram with power adjustability on-the-fly. Offering easy installation, improved
fuel economy, better towing performance, and features controlled through the industry's first smartphone app. The EZX Module is compatible with both Standard and
High Output engine variants of the 5th Gen Ram, the throttle response and drivability is exactly what you want and need. This module is completely plug and play and
leaves no trace within the system when removed, helping keep your warranty intact. Engineered and developed specifically for the daily driver and towing application,
EZX is an upgrade you'll wish you made sooner.
With gains as much as 60hp/130ft-lbs torque, the EZX can be adjusted while driving through your factory steering wheel controls, allowing you to fine tune your driving
experience at your fingertips. Using the innovative smartphone app available for download through your app store (available for both Android and IOS) you gain even
more access to your trucks features including calibrating for tire size and gear ratio changes, throttle pedal sensitivity, max cruise control speed, exhaust brake/tow haul
button recall, TPMS settings, engine temperature protection, gear display, fog lights with high beams, and even a turbo timer! EZX app also allows you to read and clear
trouble codes, check your emissions readiness status and perform a manual DPF (Diesel Particular Filter) regen cycle.
For the absolute best drivers experience, the EZX is paired with the Insight CTS3 to stayed informed with everything going on under the hood. The EZX + Insight CTS3 kits
give you everything you need to stay 'in the know'. Included in this kit is a vehicle specific A-pillar display mount that provides a factory fit and finish.
FEATURES:
Includes Edge CTS3 Insight Touchscreen Monitor
Includes Edge CTS3 A-Pillar Mount
Simple Plug And Play Installation
Easily Removable For Dealer Servicing
Power Gains Up To 60hp & 130 ft-lb Torque
Adjustable Max Cruise Control Speed Limiter
Calibrate Speedometer For Tires Up To 40" Tall
Enable Fog Lights To Stay On With High Beams
Enable Gear Display In Drive On Factory Display
Excellent For Daily Driving And Towing Applications
Compatible With Standard And High Output Engines

Adjust TPMS (Tire Pressure Monitor System) Settings
Set-Up Your Own Turbo Timer Based Off EGT's Or Time
Cold/Hot Engine Protection Incrementally Adds or Removes Power
Smartphone App Allows User Control Over Multiple Vehicle Features
Fine Tune Throttle Sensitivity For Each Power Level Through The App
Perform Manual Regen, Emissions Readiness Tests, And Clear DTC's
Remembers Your Previous Exhaust Brake And Tow/Haul Settings On Start Up
5 Power Levels Adjustable On The Fly Through Factory Steering Wheel Controls
POWER LEVELS:
Level 1 - 20HP/55TQ
Level 2 - 30HP/70TQ
Level 3 - 40HP/90TQ
Level 4 - 50HP/110TQ
Level 5 - 60HP/130TQ
Throttle Sensitivity Adjustable in Each Level via Phone App (phone or device not included)
Power Levels And Engine High Idle Control Via Steering Wheel Controls On-The-Fly
All Other Features Are Enabled/Disabled, Adjusted Via The Smartphone App
EZX APP CONTROLS -
Tire Size - Recalibrates Speedometer For Aftermarket Tire Size (28"-40")
DTC Read/Clear - Reads And Clears CEL/CTS From ECM And TCM Modules
Emissions Readiness Tests - Checks If Emission Readiness Monitors Are Set
Manual Regeneration - Triggers A Manual DPF (Diesel Particular Filter) Regeneration
Fog Light Dropout - Enables/Disables Fog Lights To Be On While High Beams Are On
Max Cruise Set Speed - Adjustable Cruise Control Speed Limiter Between 40 And 97mph
TPMS - Can Toggle TPMS System, TPMS Warnings, Or TPMS Threshold Between 30-99psi
Power Level Change - 5 User Adjustable Power Levels Controlled Through Cruise Control Buttons
Button Recall - Remembers The Tow/Haul And Exhaust Brake Settings Across Multiple Key Cycles
Gear Display - Enables/Disables A Factory Cluster Option To Display Current Gear On Instrument Cluster
APP Remapping - 5 User Adjustable Throttle Sensitivity Levels (Economy, Drive, Sport, Performance, Extreme)
Axle Ratio - Recalibrates The Vehicle For Differential Gearing Changes (3.07, 3.31, 3.55, 3.73, 4.10, 4.30, 4.56, 5.13, Or Custom)
Turbo Timer - Keeps The Engine Running Between 1-15 Minutes And/Or EGT Temps Between 250F-1000F After Ignition Has Been Turned Off
Backdown ECT - Option To Add Power Incrementally As The Engine Comes Up To Operating Temperature. Gradually Adds Power From 120F To 150F. Removes Added
Power From 240F To 250F To Protect The Engine
