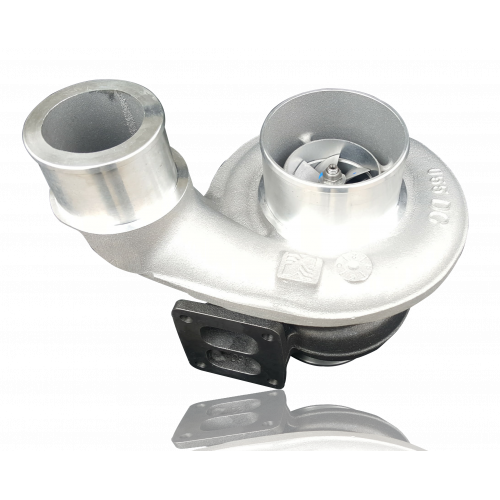

SD S366/74 T4 .91 DIVIDED TURBO

S366 boxed unit.  This turbo comes standard with extended tip technology and cast compressor wheel. Standard exhaust housing size is T-4 .91 A/R non-waste-gated, divided, with the John Deere style Marmon downpipe flange.  Compressor cover has a 4" air filter inlet. The compressor cover is the standard 3G style cover with a 3" hose.  This turbo has 3/8" -16 oil drain bolt hole size. The oil feed thread size is 1/4" NPT.

We have an option to machine to a v-band outlet cover to fit the factory Dodge 2nd Gen. aluminum elbow.  Another option is to machine the exhaust housing outlet to HX40 4".  *Call to add*

Optional 5 blade billet wheel, the standard wheel is a 7 blade cast wheel. This option helps with spool-up, we've seen it add an average of 25hp when pushing this turbo to the upper limits of its 700+ hp capability.
